硬件安全

安全的定义

Create, maintain and attest a secure state for an embedded device Ensure confidentiality, integrity and availability of the data processed on the device
Ensure the safety of the people and the environment interacting with the device
Protect the device itself, its environment and other data from processed malicious data

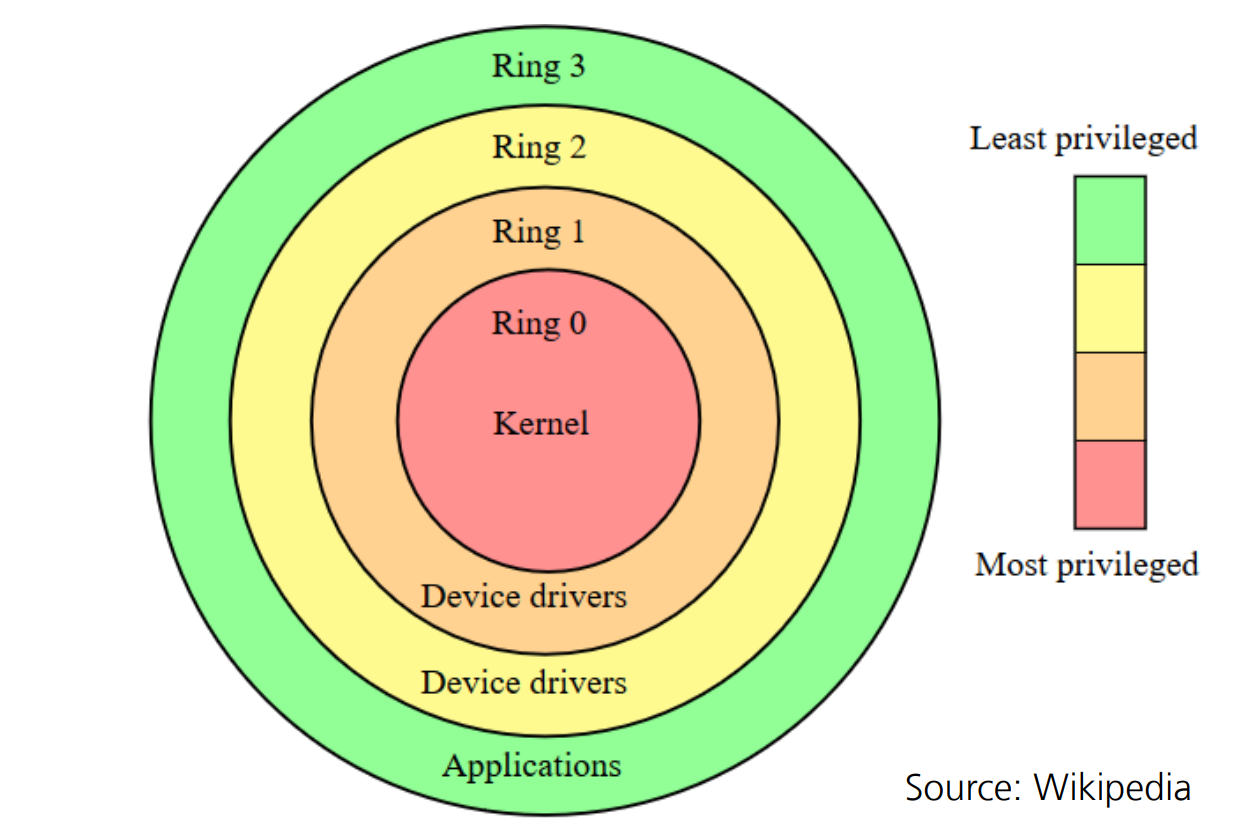

Abstraction Layers and Attack Vectors

skipped

Secure Embedded System Design

Typical Criteria

Time to market
Design + manufacturing setup cost
Component + manufacturing cost
Security
Maintainability
Energy
Performance
Features

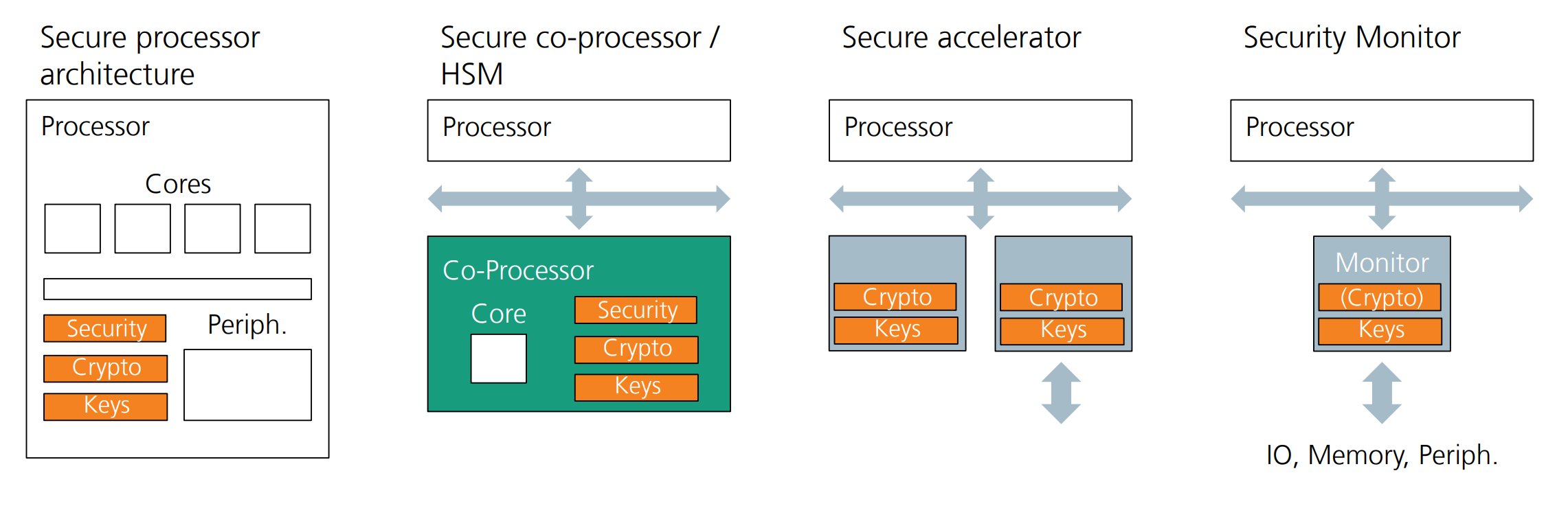

System architecture

Attack surface is lower if critical data and functions are integrated into few ICs

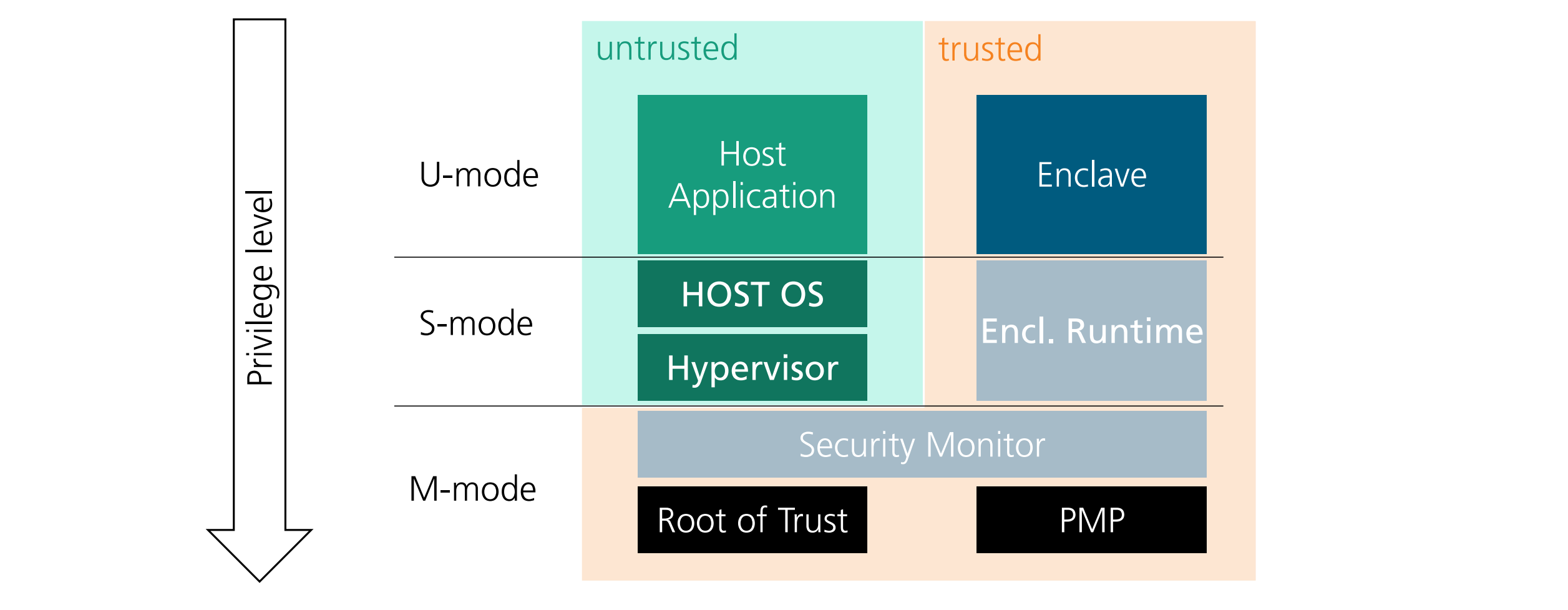

Secure processor architecture

Tight integration of cryptographic and security functionality in the processor

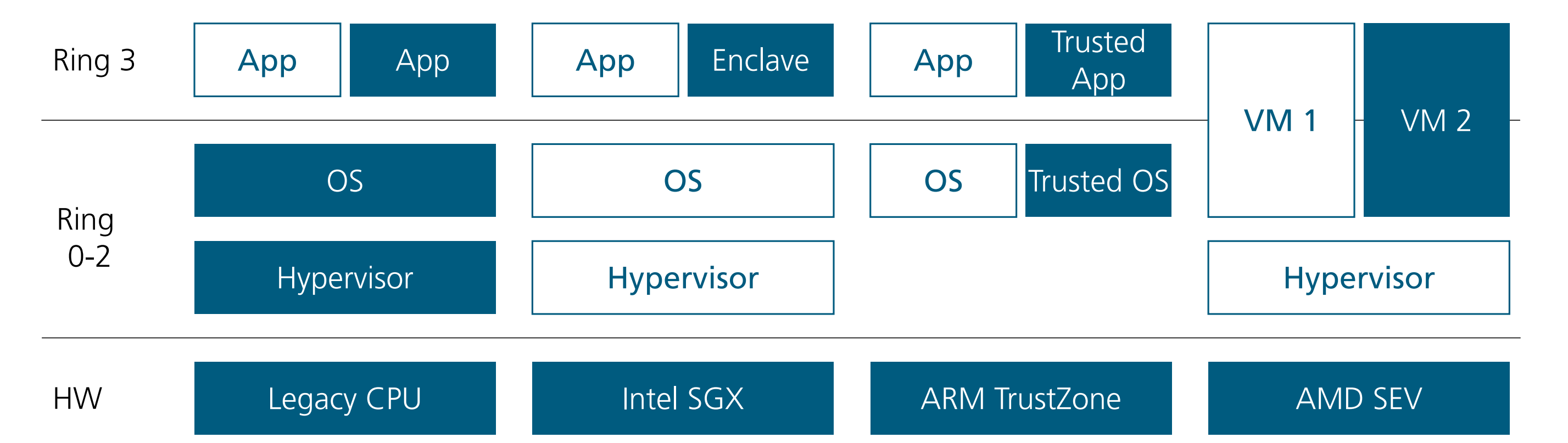

HW support for SW separation

Secure co-processor / HSM

Separation of application processor and security functionality
Dedicated interface: High latency, low throughput

Secure accelerator

Encapsuled cryptographic functionalit

Security monitor

Lightweight module outside the main data-path
Provide HW dedicated security functionality

Security-focused component

Implementation of cryptographic algorithms
Root of trust
Randomness
Clock
Protected debug interface

Cryptographic algorithms and parameters

Never use proprietary ciphers!
Use good sources of randomness!

Asymmetric vs. symmetric cryptography

Symmetric ciphers are fast, Key management more difficult
Implementation and computation complexity significant, Only makes sense with Public Key Infrastructure (PKI)

TODO: add rest slides

Cryptography Implementation

AES

KeyExpansion(CipherKey,ExpandedKey);
AddRoundKey(State,ExpandedKey[0]);
for(i = 1; i < Nrb; i++)
    Round(State,ExpandedKey[i]);
FinalRound(State,ExpandedKey[Nrb]);

Round function

Round(State,ExpandedKey[i]) {
    SubBytes(State);
    ShiftRows(State);
    MixColumns(State);
    AddRoundKey(State,ExpandedKey[i]);
}

final round (no mix columns)

FinalRound(State,ExpandedKey[Nrb]) {
    SubBytes(State);
    ShiftRows(State);
    AddRoundKey(State,ExpandedKey[Nr]);
}

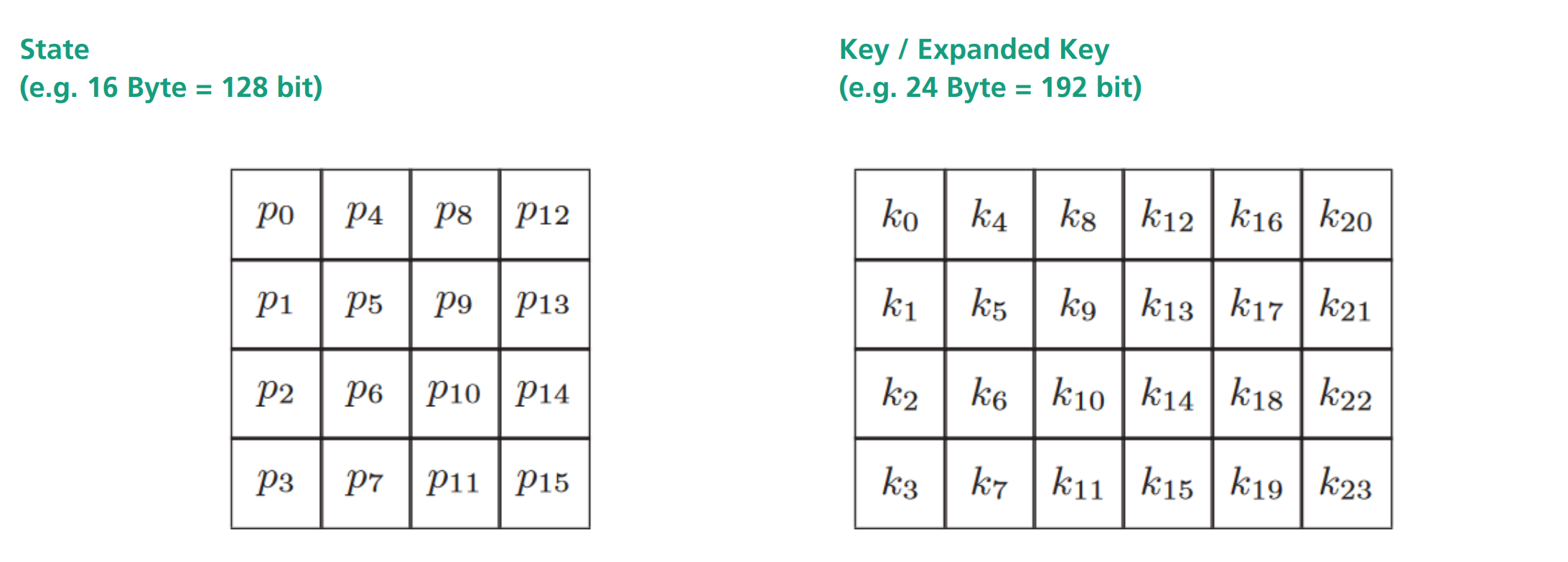

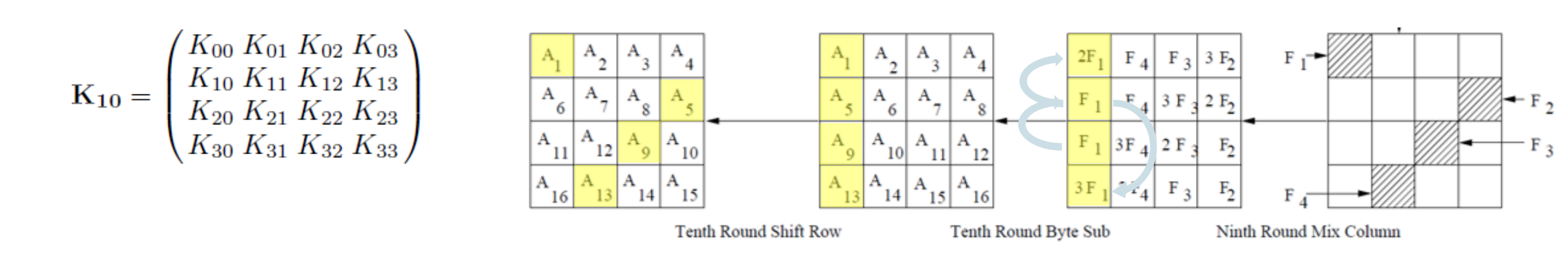

State

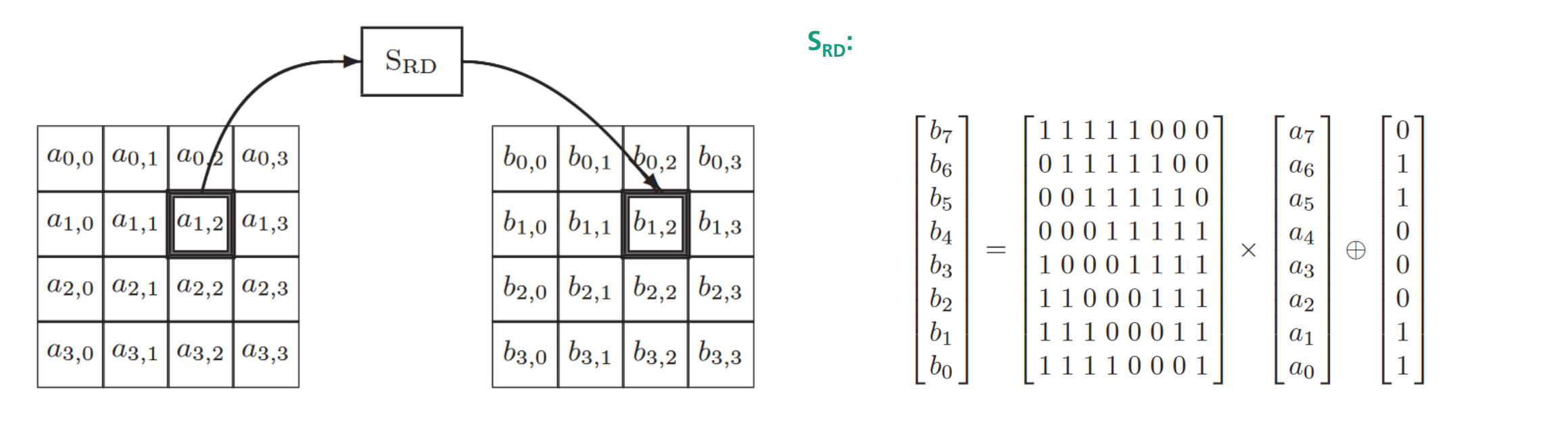

SubBytes

每个byte 通过 $S_{RD}$

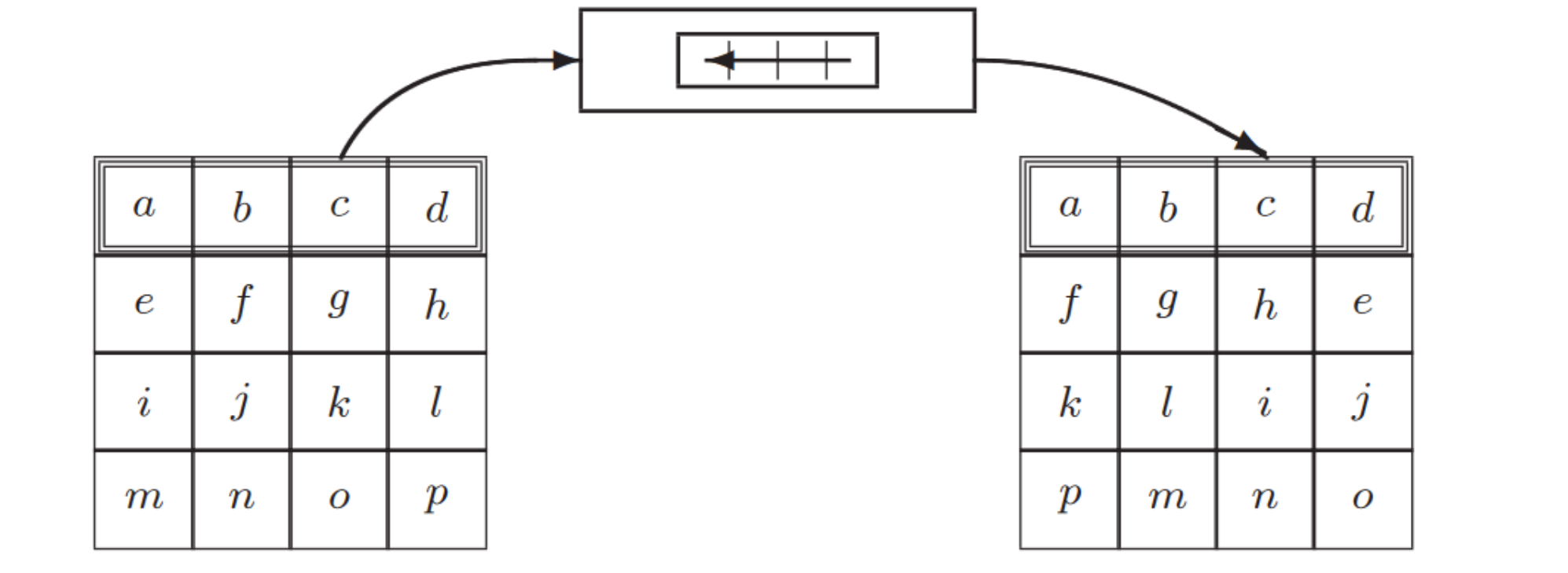

ShiftRows

第 $i$ 行向左shift $i-1$

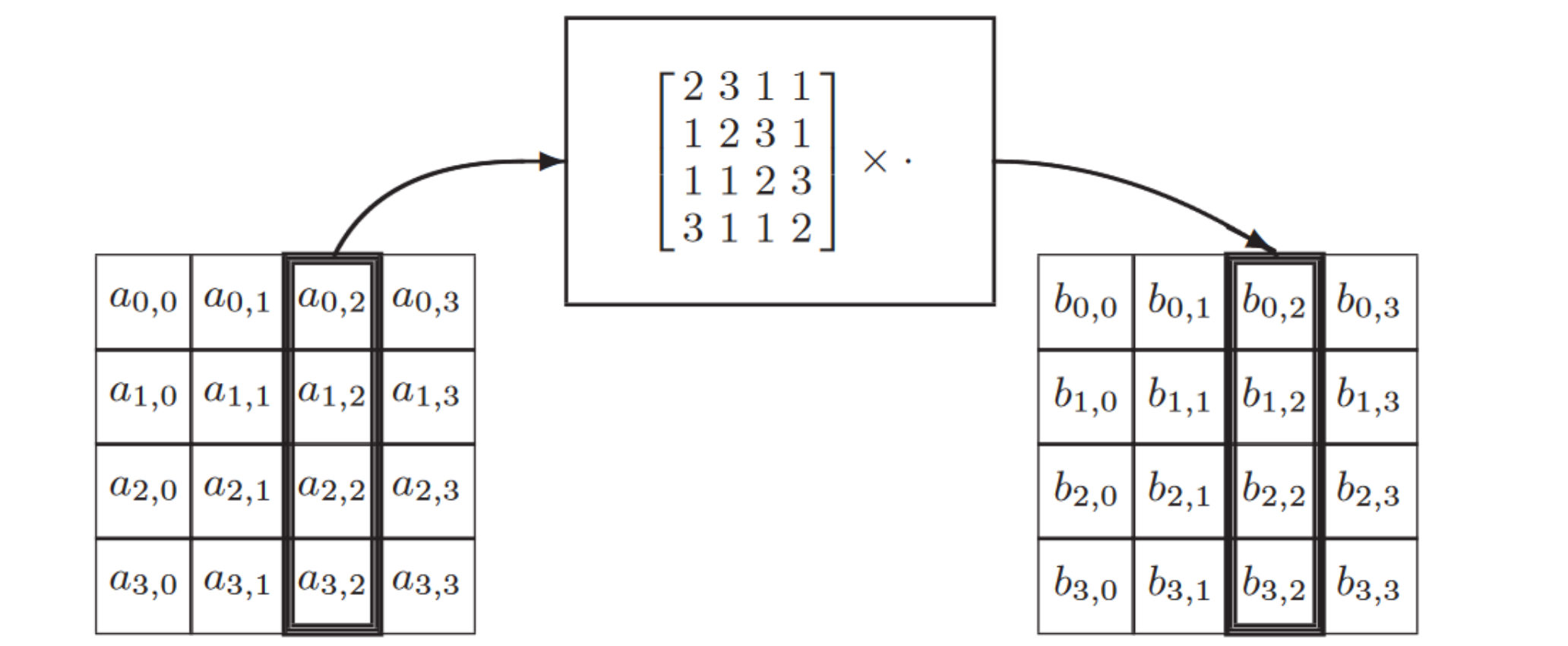

Mix column

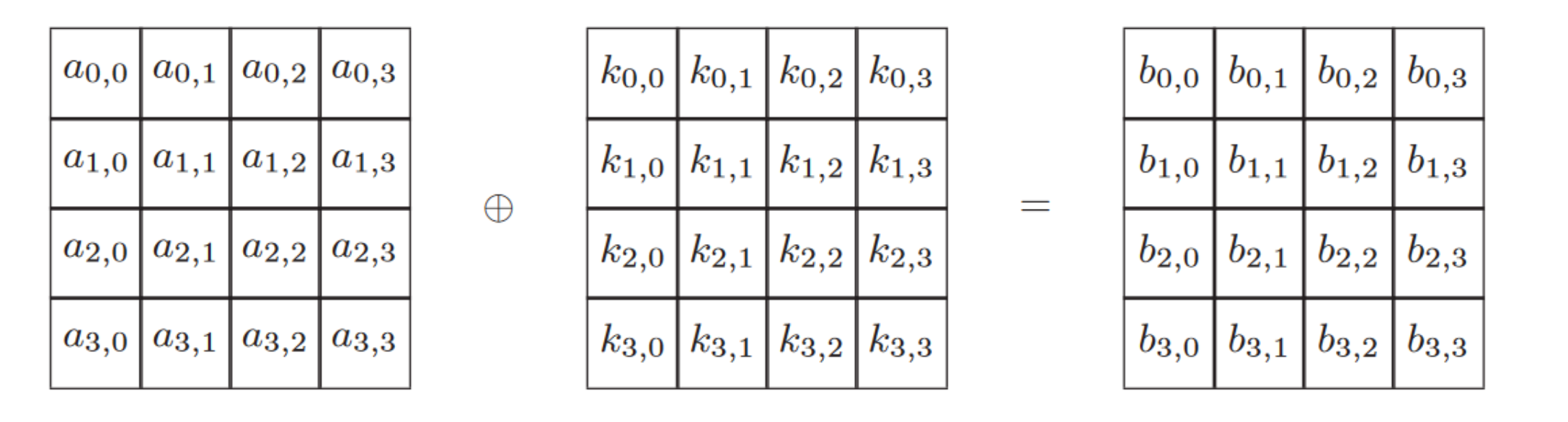

Add round key

把key xor 上去

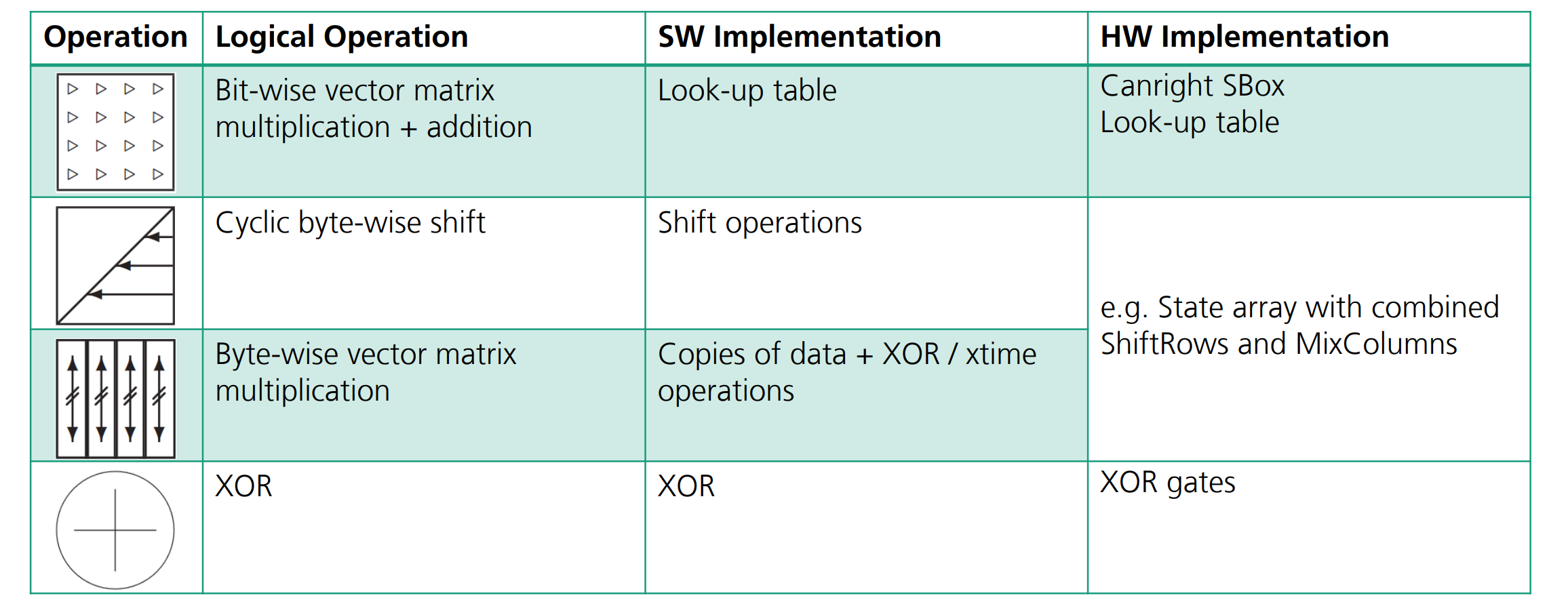

Implementation

Elliptic curve

$a, b \in \mathbb{F}_p$ satisfy $4 a^3+27 b^2 \neq 0(\bmod p)$ \[ y^2=x^3+a x+b \]

Addition

P+Q

Let $P \neq \mathcal{O}$, and $Q \neq \mathcal{O}$ such that $P \neq \pm Q$.

$P+Q=\left(x_R, y_R\right)$ , Let $\lambda=\left(y_Q-y_P\right) /\left(x_Q-x_P\right)$ , $P+Q=-R$. \[ x_R=\lambda^2-x_P-x_Q, \quad y_R=\lambda\left(x_P-x_R\right)-y_P \text {. } \]

P+P

$P \neq \mathcal{O}, P \neq-P$ , $\lambda=\left(3 x_P^2+a\right) /\left(2 y_P\right)$ , $[2] P=-R$ \[ x_R=\lambda^2-2 x_P, \quad y_R=\lambda\left(x_P-x_R\right)-y_P \text {. } \]

Neutral element

The point at infinity is the neutral element.

$P+(-P)=0$

Discrete elliptic curves

\[ P+Q: \lambda=\left(y_2-y_1\right)\left(x_2-x_1\right)^{-1} \bmod p \]

\[ P+P: \lambda=\left(3 x_1{ }^2+a\right)\left(2 y_1\right)^{-1} \bmod p \]

curve symmetrical at p/2

Elliptic curves for cryptography

parameter $a,b$, modulus $p$
$ord(E)$ large enough
$g$ generator

key generation

private key: $d$ selected uniformly at random from $[1, n − 1]$
public key is $Q = d P$

elliptic curve discrete logarithm problem

Given $Q$ , determine $d$

Encryption

plaintext $m$ is represented by point $M$ \[ E(k,M)=(kP, M + kQ) \]

\[ D(k,c_1,c_2)= c_2-d(c_1)=c_2-d(kP)=c_2-k(dP)=c_2-kQ \]

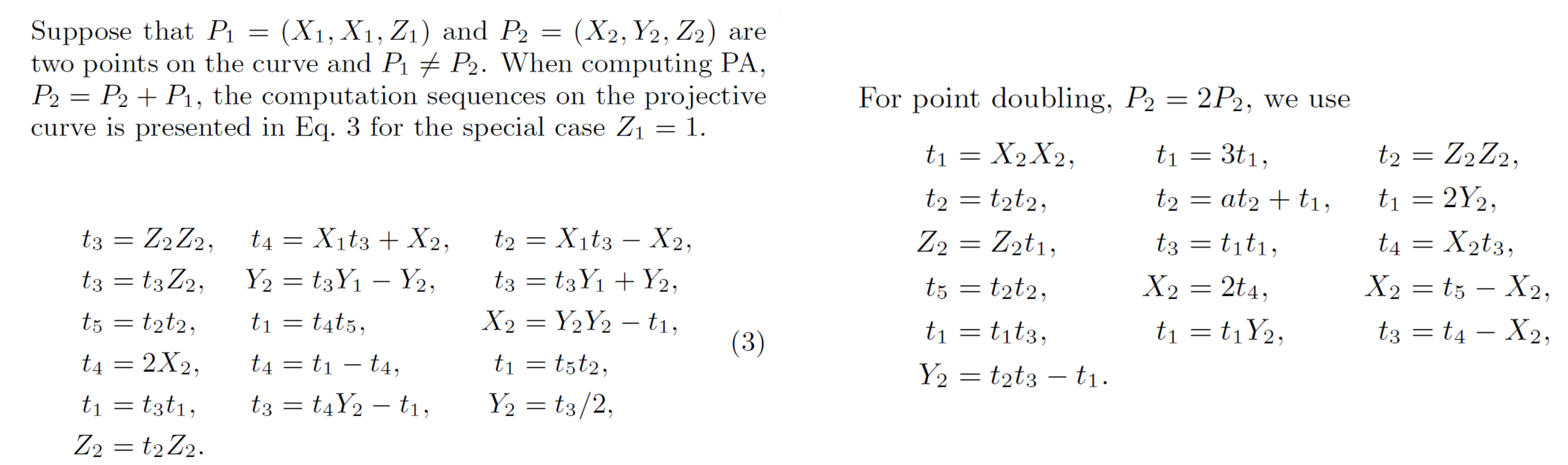

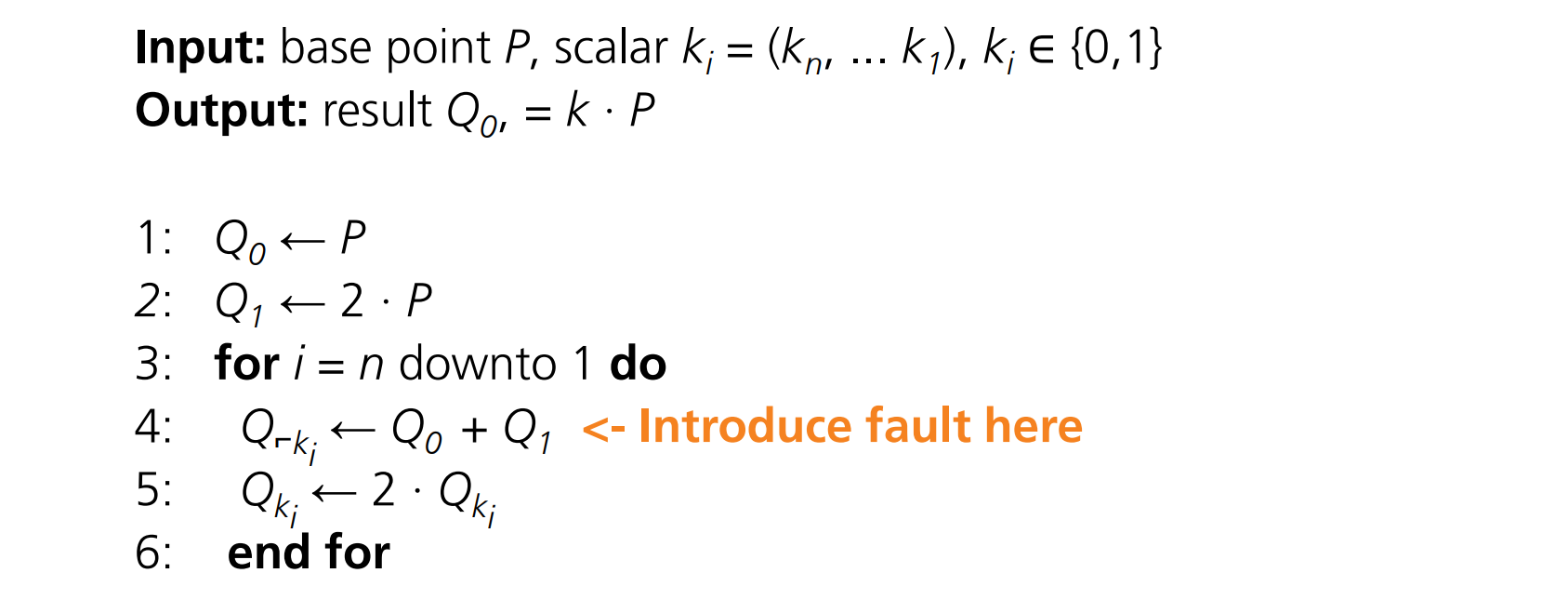

Point addition and point doubling

Montgomery reduction

Given two numbers $X$ and $Y$ in $[0, N-1]$. Let $Z=MonPro(X,Y)$ , $R$ is a power of $2$

$Z=(XY)R^{-1} \bmod N$

so, $(XR^{-1})(YR^{-1})=Z R^{-1} \bmod N$

Side Channel Attack

Side channel: any source of information on some secret besides actual communication channel
Side-channel analysis / attacks: making use of side information to recover the secret

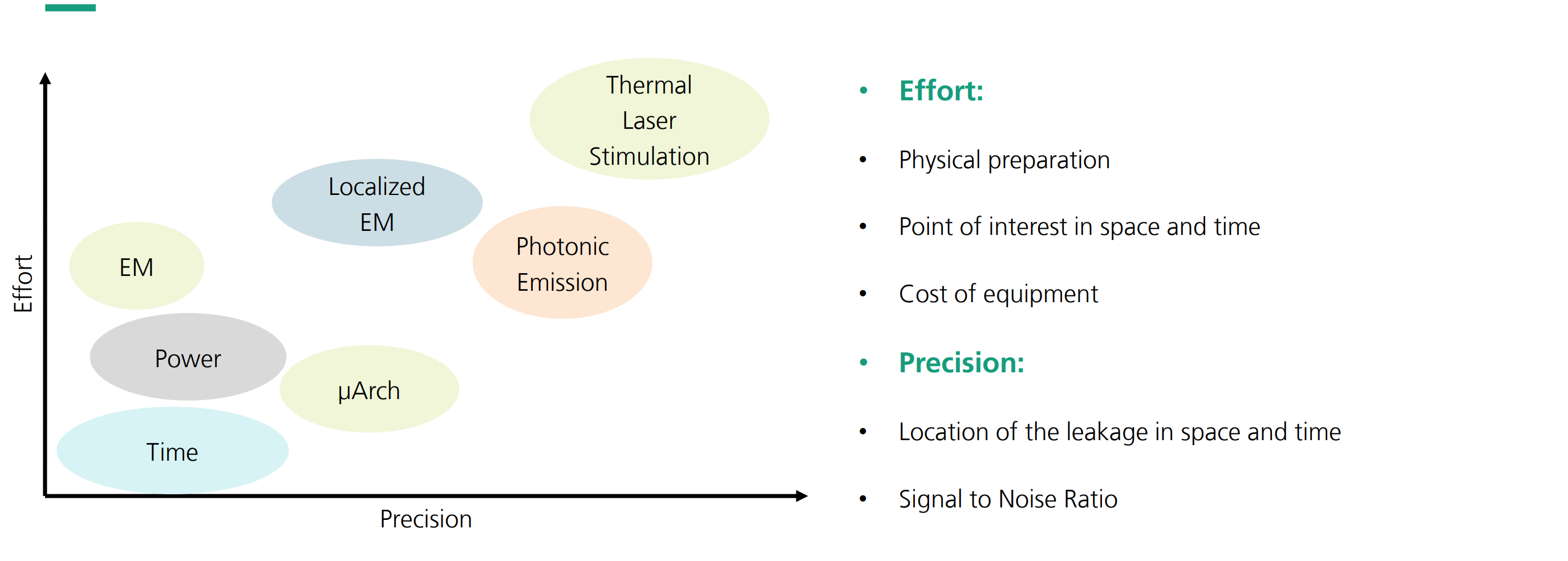

Side-channels

Memory accesses, Bus accesses
Time, Light, Sound
Behaviour of other computers
Power comsumption
Radiation,EM,

Microarchitectural attacks

Attacks purely in software

Cache attacks

Cache hits 和 Cache misses 需要的 CPU cycles 不一样

Prime+Probe Attack

attacker fill the cache
victim evicts cache
attacker probe data to determine if accessed

CMOS Dynamic + Static power

\[ P=P_{\text {static }}+P_{\text {dynamic }}+P_{\text {noise }} \]

动态功耗是由CMOS电路中开关变动引起的

Power

Global measurement of the entire system’s power consumption: High noise

Electromagnetic (EM) side channel attacks

Allows low signal to noise ratio (SNR)
High resolution in location and time

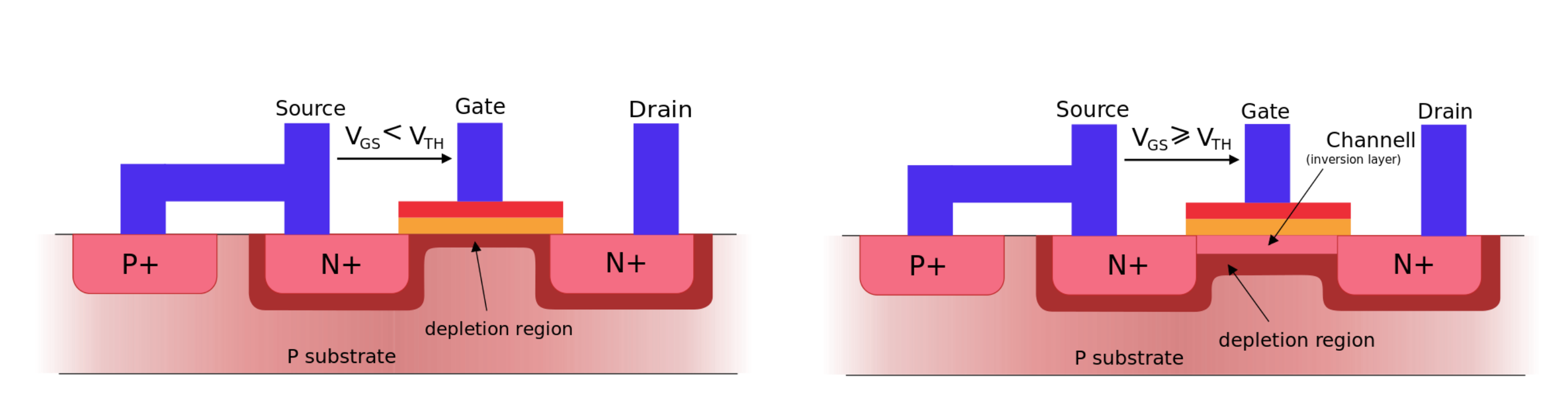

MOSFET basics

Low input voltage: no current from Source to Drain
High input voltage: current from Source to Drain

Photonic Emission

Switching of transistors causes emission of photons

Decapsulation

Necessary e.g. for local EM, photonic emission, and later laser fault attacks

蚀刻 (Etching)：

使用化学溶液（如强酸）溶解芯片封装材料，暴露出内部电路。
常用于去除塑料封装。

研磨 (Grinding)：

使用机械方法逐层研磨掉封装材料。
适用于硬质封装材料。

芯片薄化 (Thinning)：

通过研磨或化学蚀刻将芯片背面变薄，以便进行背面攻击。
这种方法通常用于需要从芯片背面进行攻击的场景。

热激光刺激Thermal laser stimulation

If a transistor is heated locally, a voltage is generated
No effect on high-ohmic transistors as ends are drains are floating.
Low-ohmic channel: increase in drain voltage effects source of the connected transistor当低电阻通道的漏极电压增加时，会影响连接的晶体管的源极。

这种电压变化会导致连接晶体管的电阻降低
Leads to decrease in resistance that is observable at the power supply pins of device.在设备的电源引脚上可以观察到电阻的减少。这种变化可以用来检测和分析SRAM单元的状态和工作原理。

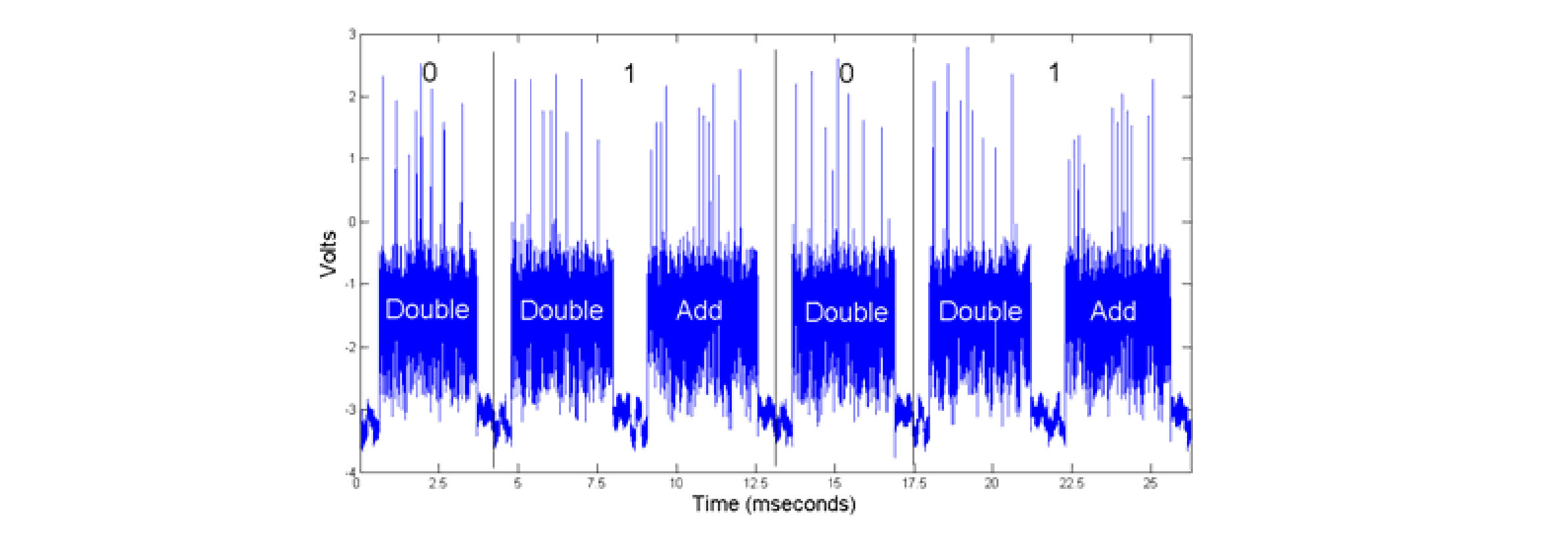

Simple Power Analysis

Record single measurement for the attac
Leaked information is detectable in single trace

Some criteria affecting the measurements

Target complexity: (Noise of other activities / components)
- Bare metal SW, small HW architecture.
- Large SoC
SW / HW implementation (Number of involved logic gates and registers)
- SW implementation
- HW implementation
Manufacturing technology (Lower voltages and currents)
- Older / larger technologies
- Newer / smaller technologies

comparison

Differential Power Analysis

ECDSA椭圆曲线数字签名算法

For Alice to sign a message m

$e=H A S H(m)$.
Let $z$ be the $L$ leftmost bits of e, where $L$ is the bit length of the group order $ n$
$k$ randomly from $[1,n−1]$
Calculate the curve point $(x_1 ,y_1 ) = k × G$
$r=x_1 \bmod n$.
$s=k^{-1}(z+r d) \bmod n$

return $(r, s)$

Differential Power Analysis

Record many traces, of device using same secret (This is mostly impossible for asymmetric cryptography)
Statistical analysis to distinguish correct key
Concentrate on differences between traces -> differential analysis

Hypothesis test

对于每一个 key guess

找一个bit 分为 0 和 1 两组

如果猜测正确, 那么根据CMOS理论，这两者的trace会由显著差距

Hypothesis testing: T test

T test computes the difference of the means of two distributions

Correlation-based DPA

Correlation-based DPA uses multiple bits and power model

Derive abstract values using ’power model’ and statistically compare relation to measurement
(Hamming weight power model to derive values )Assumes that 1-s require more electrical current
Pearson correlation coefficient for finding linear relations,If relation is statistically significant,key guess correc

DPA Properties

Robust against noise because many measurements can be used to ’average’ noise
Attack effort is given in number of measurements required for success

Practical problems

Find out which algorithm is used
Find out when it is used
Synchronization of trace recordings
With EM measurements (often required because of low SNR): Unknown time and unknown measurement position

Countermeasures

Constant execution time of cryptographic operations
Protocol-level countermeasures: Change key frequently
Use algebraic structure for countermeasure

Most countermeasures come with performance penalty

Usually, countermeasures are combined (e.g. masking and hiding

Boolean masking

Split all binary variables a into two parts Choose masks $m_a$ randomly such that \[ a_m=a+m_a \] If the attacker cannot or does not exploit the Pexp (vm) and Pexp (mv ) simultaneously, the implementation is secure against DPA

Masking

Use random value and XOR value onto processed data

Attacker cannot compute intermediate values needed for DPA

Hiding

Reduce SNR

Template attack

Characterization phase

Attacker builds templates including mean and covariance matrix (m, C) v,k for different keys k and inputs v (intermediate values)
Probability density function of the traces is estimated

attack phase

Attacker measures a power trace and calculates p(t|(v, k))
Key that leads to the highest probability is considered the correct key

Key rank estimation / security level

After an attack, how to determine the security level

Power models for DPA

Bit: The bit value 假设处理 0 和 1 时的功率消耗不同。这个模型关注单个位的值。
Hamming weight对于内存访问来说是一个有效的模型
Hamming distance适合攻击寄存器中的过渡
Zero value:零值的功率消耗与所有其他值不同。这个模型关注零值与非零值之间的功率差异。
Profiled model: 使用实际测量的功率轨迹来计算均值和标准差，从而构建模型。这是最接近实际功率消耗的模型

Classification of SCAs

Characterization of attacked device: Profiled, non-profiled with HD,HW
Nr. of observations
Nr. of variables in statistic analysis: Univariate, Multivariate
Distribution of power value: Power consumption is assumed as Gaussian distribution, no assumption

Microcontroller Security

What sensitive data could be stored in a microcontroller?

Intellectual property
Personal data
Credentials
Licenses

What are threats for microcontrollers

Product Piracy
Cloning
Tampering

What are attack vectors for microcontrollers

Side-channels
Fault injection
Probing
Logic attacks

Exception(al) Failure

“异常失败”一词指的是在系统或应用程序中遇到的特定类型的故障或漏洞，这些故障或漏洞通常涉及异常处理机制的失效或误用。这种失败可能导致系统行为异常，甚至可能被攻击者利用来进行攻击

利用异常的错误信息来攻击

TODO

Fault Attacks

Induce fault

Exploit reaction of device

Faults in circuit behavior

Digital circuits require certain operating conditions to work properly: temperature range,supply voltage

By changing the operating conditions, an attacker can change the state of the circuit

Effects of a fault

The control flow: instructions are changed, skipped, …
Data integrity: data values changed

Leading

Arbitrary changes of the instruction pointer.
Arbitrary changes of data in registers or memory

Temperature

Manufacturers define upper and lower temperature bounds, wherein the device operates correctly

Glitching

Clock Glitching

Digital circuits require a reliable clock source
If the clock period is too short, not all signals can propagate through the circuit in time

Voltage glitching

Short interruptions of the power supply may cause misinterpretation or skipping of instructions

Electromagnetic fault injection

Inject faults by inducting currents via electromagnetic impulses

Advantages

Good timing control,No decapsulation necessary

Disadvantages

Less precise than lasers

Pulse duration longer than laser pulses

Body bias injection

通过在集成电路（IC）的衬底（substrate）上施加电压，以引发故障或影响电路的行为。这种方法利用了半导体器件的物理特性，尤其是二极管效应，来操控电路的工作状态。

Open the package打开封装是为了能够直接对IC的衬底（substrate）进行操作
Attach a coil and a pulse generator连接线圈和脉冲发生器
Induce a pulse into the substrate of an IC

Laser fault injection

光电效应

Photons transformed to energy when they hit an object (E = h * frequency)

光子携带的能量能够激发物体内的电子，导致物体的电荷状态发生变化。

Charges in semiconductor create electric field
Small current is induced

Assumption

Laser fault creates a an additional current

Missing charges compensated by load on $C_{load}$

If enough charge is missing output goes from 1 to 0

Properties of LFI

Requires depackaging of the IC
Can be carried out from the frontside or the backside

front side

allow use of shorter wavelengths -> increased precision

But: Metal layers reflect laser light

Backside attacks

offer open access to all parts of the circuit

But: Requires use of infrared light to pass through silicon substrat需要使用红外光来穿透硅基板，这可能需要额外的设备和技术支持。

Rowhammer attack on DRAM

When a wordline in DRAM is repeatedly toggled, nearby rows leak charge through electromagnetic coupling

基本机制：当 DRAM（动态随机存取内存）中的一个字线（wordline）被重复地切换（切换表示读取或写入操作）时，附近的行会通过电磁耦合泄漏电荷。

重复访问：如果对一个地址进行足够多的访问（例如，约 10,000 次），这些附近的行在行刷新（通常是每 64 毫秒）之前，可能会发生值的变化

Allows to circumvent memory protection
Can be executed remotely

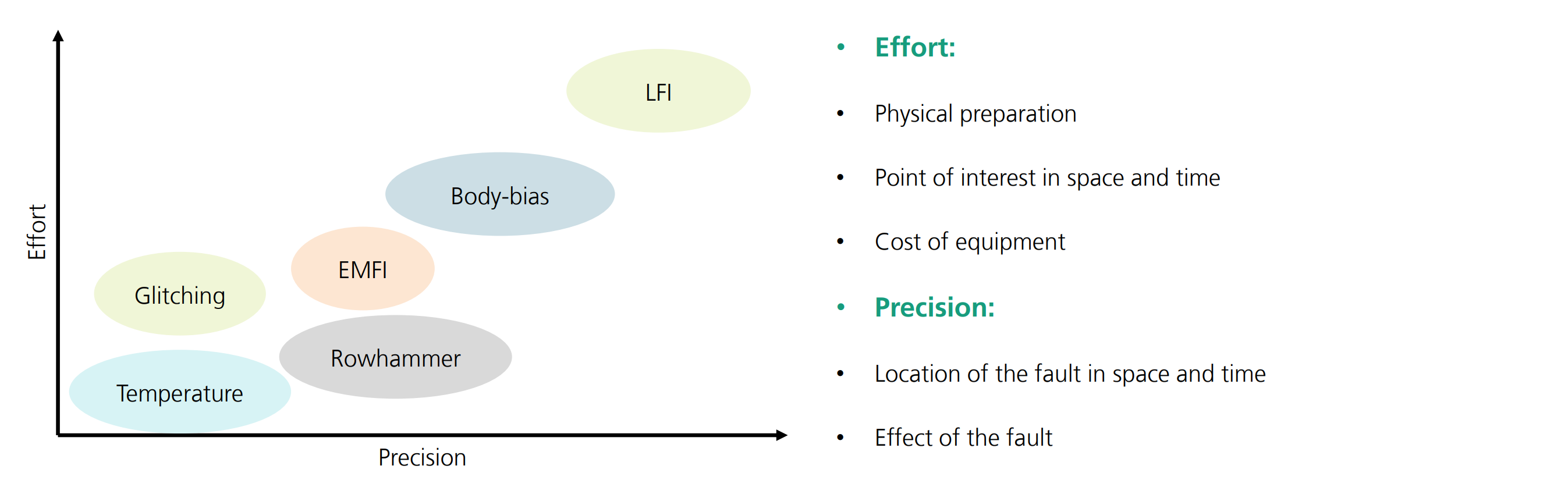

Fault models

Characterize assumptions for attack / abilities of adversary 故障模型用于描述攻击者的假设和攻击能力。它定义了攻击需要哪些特性来成功实施故障攻击
Attacks require certain fault model properties
- Affected bits specific or random, local or global, single or multibit
- Effect - bit flip (toggle), fixed state (always 1 or 0) or inconsistent
- Permanence permanent alteration or transient effect
- Timing precision random, loose or precise timing

Comparison of attack techniques

Fault attacks on cryptographic algorithms

Classification

Differential fault attacks
Safe error fault attacks
Algebraic attacks

Simple example DFA

Induce fault 把key的某一bit变成0

然后比较结果，如果改变了，那么这一位是 1

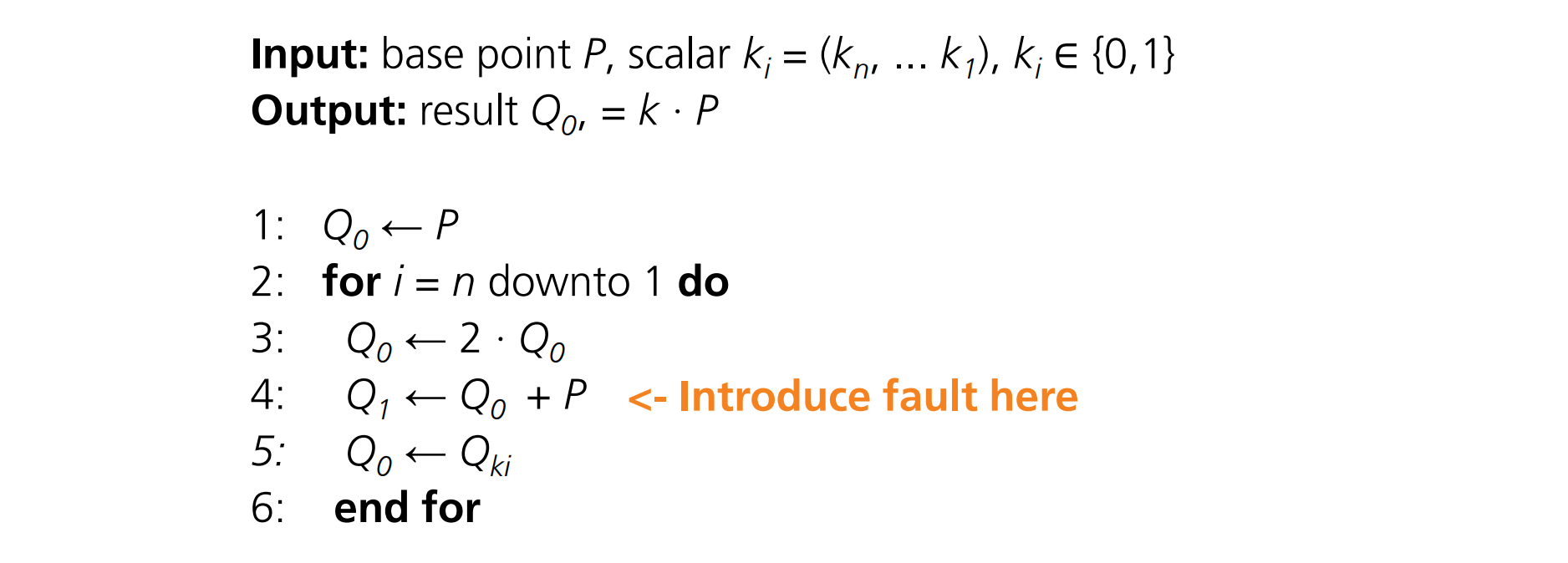

Fault Attacks on ECC

改变 $Q_{ki}$ 如果结果变量, 那么就知道 $k_i$ 的值了

Montgomery Ladder

Introduce fault in $Q_1$

故障影响分析：

当

$k_i=0$

时：
- 计算 $Q_1←Q_0+Q_1$
- 计算 $Q_0←2⋅Q_0$
- 由于 $Q_1$ 被正确的结果覆盖，因此故障不会影响最终结果。
当

$k_i=1$

时：
- 计算 $Q_0←Q_0+Q_1$
- 计算 $Q_1←2⋅Q_1$
- $Q_1$ 保持故障状态并输出错误，因为它没有被正确的结果覆盖

Weak-curve fault attacks

Invalid point attack

Modify input base point P to P’ through fault

P’ has low point order on a weak curve

Countermeasure: Point validity check:

Invalid curve attack

Modify curve parameters

ECDLP can be solved computationally

Countermeasure: Curve integrity check:

Differential fault attack on AES

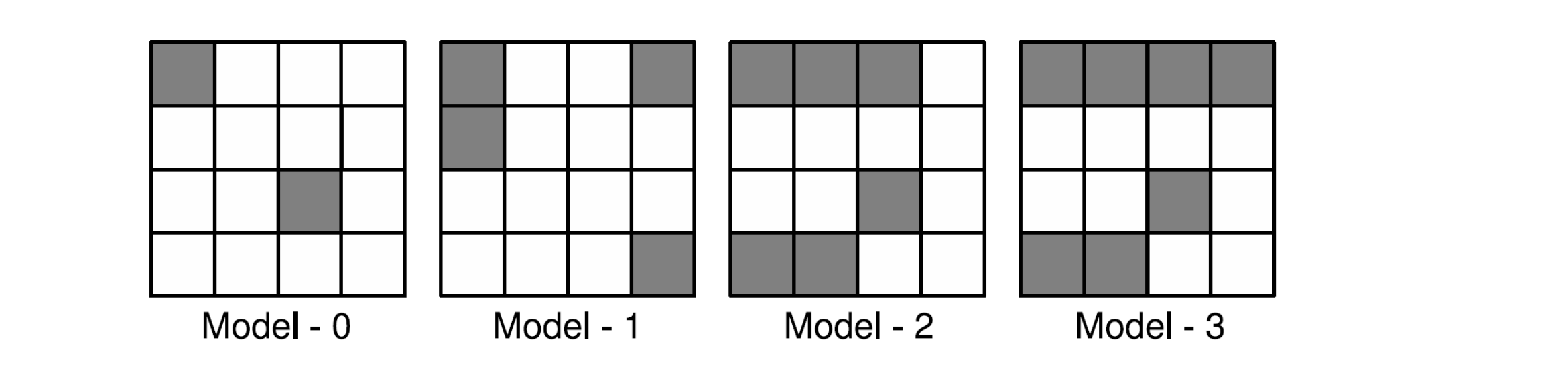

Fault Models

Model i: $Mi$, A random non-zero fault occurs at most across $i$ diagonals.

Key equations

\[ \begin{aligned} I S B\left(x_1+K_{00}\right)+I S B\left(x_1+A_1+K_{00}\right) & =2\left[\operatorname{ISB}\left(x_8+K_{13}\right)+I S B\left(x_8+A_5+K_{13}\right)\right] \\ I S B\left(x_8+K_{13}\right)+I S B\left(x_8+A_5+K_{13}\right) & =I S B\left(x_{11}+K_{22}\right)+I S B\left(x_{11}+A_9+K_{22}\right) \\ I S B\left(x_{14}+K_{31}\right)+I S B\left(x_{14}+A_{13}+K_{31}\right) & =3\left[\operatorname{ISB}\left(x_8+K_{13}\right)+I S B\left(x_8+A_5+K_{13}\right)\right] \end{aligned} \]

ISB 是 inverse Sub Bytes

$ISB(x_1+K_{00})+K'_{00}+ISB(x_1+A_1+K_{00})+K'_{00} = ISB(x_1+K_{00})+ISB(x_1+A_1+K_{00})$

因为 xor 就是 +, 所以 Addroundkey 第九轮没有了

Remaining key space using all the equations above: $2^{32}$

Fault sensor

光检测器（Light Detectors）

光检测器用于检测光的梯度变化。当有光照变化时，传感器会感知到这种变化，从而触发相应的安全措施。这类传感器主要用于防止激光注入攻击，因为激光注入会改变光的梯度。

电源电压检测器（Supply Voltage Detectors）

电源电压检测器对电路中电压的突然变化作出反应，确保电压始终在电路的容忍阈值内。如果检测到电压超出容忍范围，系统将采取措施，如重启或进入安全模式，以防止故障攻击。

频率检测器（Frequency Detectors）

频率检测器强制电路在特定的操作频率范围内工作。如果电路的操作频率超出预设范围，电路将自动重置。这类传感器主要用于防止时序攻击，通过确保电路运行在安全的频率范围内，避免由于时序变化引发的故障。

主动屏蔽（Active Shields）

主动屏蔽是一种覆盖整个芯片的金属网格，网格中持续传递数据。如果网格发生断开或修改，芯片将停止运行。主动屏蔽主要用于防止探测攻击，但同时也有助于保护芯片免受故障注入攻击，因为它使得定位电路中的特定模块变得更加困难。

Selected HW countermeasures

Duplication / multiplication with comparison
Time redundancy with comparison在不同时间段执行相同的计算操作，并对比结果。例如，在一次计算完成后，稍作延迟，再进行相同的计算，然后比较两次结果是否一致
Recomputing with swapped operands

SW countermeasures

Complement hardware countermeasures ,Protection against future attack techniques,Do not increase the hardware block size

Checksums, Randomization
Variable,Execution redundancy
Ratification counters and baits通过插入小的代码片段进行验证操作。例如：验证计数器：在关键操作前后使用计数器，确保操作次数正确。
Dummy Operations在关键操作之间插入一些虚操作，这些操作不会改变实际结果，但会增加攻击者推断实际操作的难度。
Calculate the Result and Then Compute Back 通过计算结果并进行逆运算来验证输入的正确性

Control flow integrity through sponge-based control-flow protection

Detection: random instruction after decrypt stage在程序的解密阶段（或关键计算阶段）之后插入随机指令，可以用来检测是否发生了控制流篡改。具体来说，当程序执行到这些随机指令时，它们应当不会改变程序的实际逻辑，但如果攻击者尝试通过篡改指令流来绕过保护，这些随机指令的执行结果将会出现异常。

Address:

Corrupted communication in memory and instruction fetch
Tampering with the processor core

Sponge-based control-flow protection

是一种通过使用基于状态的哈希函数来确保程序控制流完整性的方法。这种保护机制主要用于防止攻击者通过操控程序的控制流来执行恶意代码。

在控制流程加入patch, 用这个patch更新哈希函数, 最后检验指令的流程的哈希值是否是预期的

Additional patches introduced for indirect calls
Four patches vs one to avoid undesired collisions into SCFP state

为了避免碰撞，可以使用四个不同的补丁，分别处理不同类型的控制流转移

Secure Processor Architectures / FPGAs

Authentication Token

Passwords are frequently exploited
Second authentication factor helps

Architecture of OpenTitan

Open source project for a secure element
Mixture of open digital an proprietary analog components

Examples for Customizing OpenTitan

Removal of internal NVM („flashless“)
Post-quantum secure boot
Cryptographic key isolation
Authenticated debug

Post-quantum secure boot

Leighton-Micali Signatures (LMS) : Hash-based signature
- LMS Rust implementation
- LMS hardware accelerator
Dilithium Support for OpenTitan

Field programmable gate arrays (FPGAs)

Devices with configurable digital logic

Secure Boot

Two software authorities

Monotonic incrementing serial numbers to implement certificate revocation

Key Management

Strong cryptographic keying material required to protect sensitive information

Unique device secret stored in one-time programmable memory

Used to implement TCG’s Device Identifier Composition Engine (DICE)

Secure Update

Software vulnerabilities are difficult to avoid, a secure update mechanism is important

Software update mechanism alone is not sufficient

Additional control of device with the authenticated watchdog timer

Authenticated Watchdog Timer

The typical watchdog timer

The authenticated watchdog timer is similar, but with important differences

Memory Encryption and Enclaves

Memory encryption

CPU: data and addresses in plaintext only
Plaintext + ciphertext buses with encryption modules in between

Disk encryption

XEX-based tweaked-codebook mode with ciphertext stealing (XTS)

Enclaves安全区

安全区（enclave）是现代计算系统中的一种安全机制，它提供了一个隔离的执行环境，用于保护敏感数据和代码免受外部攻击或未经授权访问。

Protected mode (rings)

Trusted Execution Environment (TEE)

Goal of implementing enclaves

Authenticate itself (device)
Authenticate software
Guarantee the integrity and privacy of remote execution

different enclaves

深色是trusted componet

Other TEE

AMD SEV
ARM TrustZone

Why do we need an open-source enclave?

Existing enclave systems are proprietary and difficult to experiment with
A lot of challenges for enclaves
Open source design
- Provides transparency & enables high assurance

Keystone: Open framework for secure enclaves

The first full-stack open-source enclave for minimal requirements
Open framework: built modular & portable for easy extension

Minimum set of hardware

RISC-V Physical Memory Protection (PMP)
RISC-V U(ser)-, S(upervisor)-, and M(achine)-mode
Entropy source available at boot time
Root of trust (preferably a crypto engine)
If untrusted/external DRAM –memory encryption/integrity engine

Demonstrated in unmodified processors为了在未经修改的处理器上实现安全区和其他关键安全功能，上述硬件组件是必不可少的。

Memory isolation with the RISC-V PMP

Special registers to control permissions of U-and S-mode accesses to a specified memory region
Whitelist-based
Dynamically configurable by M-mode

为了支持多个并发运行的安全区，每个“活动”的安全区都对应一个 PMP 条目。

S-Mode enclave runtime

Provides kernel-like functionality: Syscall, traps,Thread and page table management
Useful layer of abstraction

S-模式运行时提供了一个抽象层，使得用户模式（U-mode）代码只需要最低的权限来执行。这种设计方式极大地减少了代码执行的权限，降低了潜在的安全风险

通过在S-模式提供额外的功能，运行时避免了直接在安全监控（SM）中添加复杂性。

Remote attestation

远程认证是一种确保远程系统可信性的技术，特别是在创建安全区（enclave）时，RISC-V的安全监控（SM）执行特定步骤来实现这一目标

measure the enclave 在创建安全区时，安全监控（SM）会测量该安全区。这一测量过程通常涉及计算安全区代码和数据的哈希值，以生成一个唯一的标识
Enclave may bind a key to the enclave report
SM signs the enclave report and hands it (+ SM report) to the user

比如在用户发起交易时，安全区可以生成一个经过签名的报告，证明交易数据和身份验证的真实性，远程银行服务器可以验证该报告以确认交易的合法性。

Secure enclaves in a speculative out-of-order processor

Forbid resource sharing between enclaves禁止资源共享

为了防止不同安全区之间的资源共享，从而避免潜在的安全漏洞，例如缓存集合在不同安全区之间共享带来的数据泄露风险，MI6的设计禁止了这种资源共享。这类似于操作系统中不同特权级别之间的隔离机制。

Slowdown by not using speculation in the entire program禁用投机执行

在现代处理器中，投机执行是一种常见的性能优化技术，通过提前执行可能会用到的指令来提高性能。然而，这也带来了安全风险，例如Spectre和Meltdown攻击。MI6通过完全禁用投机执行来提高安全性，但这会导致约3倍的性能下降。

All modules with private state are flushed on enclave entry and exit.私有状态刷新

在进入或退出安全区时，所有具有私有状态的模块（例如缓存、寄存器）都会被刷新，以防止信息泄露。这种操作会带来大约5%的性能开销，但显著提高了安全性。

Last Level Cache is spatially partitioned.末级缓存空间划分

为了进一步提高安全性，末级缓存（LLC）被空间划分，这意味着不同安全区之间不会共享同一个缓存区块，从而减少了缓存侧信道攻击的可能性。这种划分带来的性能开销大约为7%。

Area overhead for hardware modifications硬件修改的面积开销

为了实现这些安全特性，需要对处理器进行一些硬件修改。除了一级缓存、浮点单元和末级缓存切片之外，这些修改带来的面积开销大约为2%。

Summary

Open source enclaves reduce the TCB to hardware, security monitor and app通过开源安全区，可以将信任计算基（TCB）缩减到硬件、安全监视器和应用程序。
Limited required hw security features 开源安全区所需的硬件安全特性较为有限，这意味着它们可以在各种硬件平台上实现
Provide a larger flexibility than fixed TEEs相对于固定的可信执行环境（TEEs），开源安全区提供了更大的灵活性

Random Number Generation

Data processing inequality

The entropy of a random variable cannot be increased by any deterministic operation

True Random Number Generators (TRNGs)

Noise source: Root of security for the entropy source and for the RBG as a whole.
Conditioning: removes bias in raw data去除原始数据中的偏差。

常用方法包括块密码和哈希函数
Health test during startup and operation

Pseudo Random Number Generators (PRNG)

Entropy input, seed, and later internal state, need to be kept secret
Process state (‘generate’) with hash function or block cipher
Reseeding重新播种的目的是限制已泄露种子的影响，克服生成函数的局限性，增强PRNG的安全性。
Enables high throughput!

suppose that an adversary knows $State_x$ .

Backtracking resistance:Use a one-way function
Prediction resistance: Can only be addressed by reseeding

环形振荡器真实随机数生成器（RO TRNG）

Ring Oscillator

Noise leads to jitter(抖动) in the oscillation (振荡)
XOR creates merges multiple inputs to one random response

RO TRNG通常使用多个环形振荡器的输出信号。

这些信号通过异或（XOR）操作合并到一起，生成单一的随机输出

Secure key storage and PUFs

Secure key storage

Read-only memory (ROM)

里面的值是出场决定的, 不适合作为key存储，因为可以读取

Fuses熔丝

Metal eFuse blown by high-density current
Bone-type layout -> area in the middle is blown电子熔丝通常采用骨型布局设计，即中间区域较窄，方便在编程时通过高密度电流将其吹断。
Can be programmed bit by bit
Programming creates an open circuit编程时，通过施加高密度电流，使特定位置的熔丝吹断，形成永久性开路

Anti fuses

State not visible externally 状态不会被外界看见
Programming establishes a connection反熔丝通过编程过程建立电连接。与电子熔丝（eFuse）通过高密度电流吹断金属形成开路不同，反熔丝是通过高电压或高电流使绝缘材料击穿，形成永久性导电路径

Physical Unclonable Functions

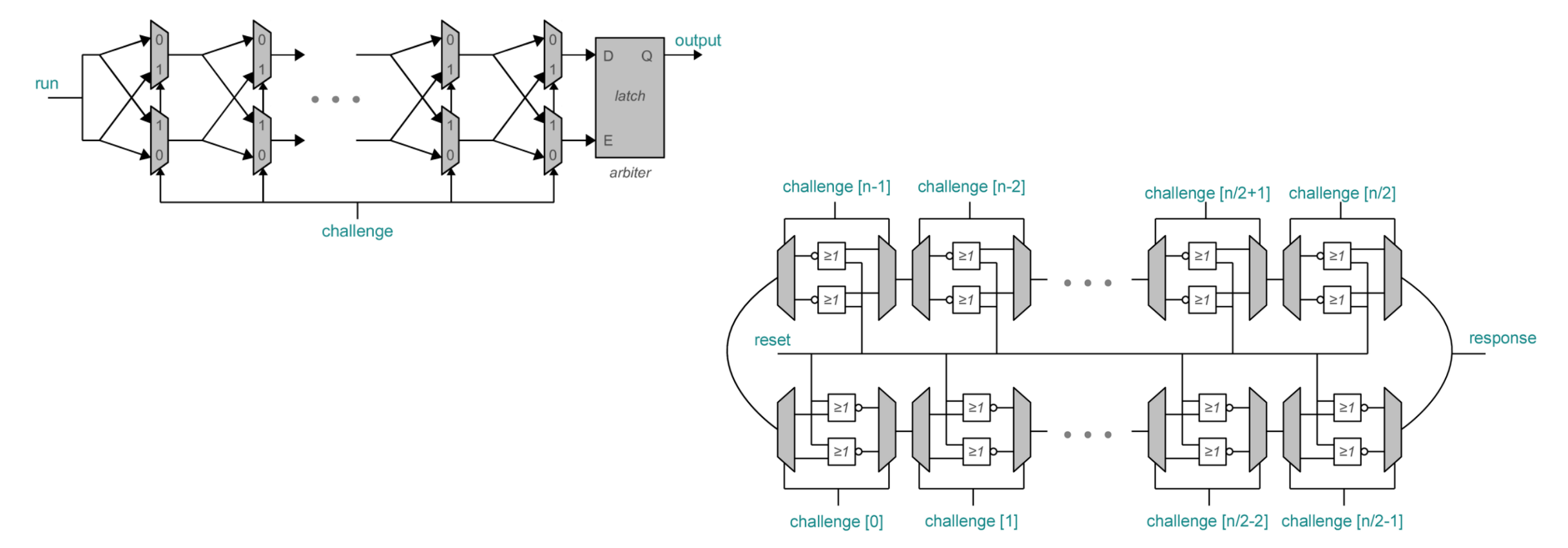

Example: Arbiter PUF

Based on different latency of signals, Arbiter will output 0 or 1. Due to phisical unclonability, arbitor PUF provided property of unforgerability.

信号在两个延迟链中传播，由于制造过程中微小的工艺差异，每个链路的总延迟会略有不同。

仲裁器决策：仲裁器根据两个链路的延迟差异决定输出值，通常输出为 0 或 1。

唯一性：仲裁器 PUF 可以生成唯一且不可克隆的响应，用于芯片认证，确保每个芯片都是唯一的。

防伪造：由于物理差异难以克隆，仲裁器 PUF 提供了防伪造的机制

Basic PUF authentication

设备 A（验证者）生成一个随机的挑战，并将其发送给设备 B（被验证者）

设备 B 使用其 PUF 计算出对应于挑战的响应

设备 B 将计算出的响应发送回设备 A。

设备 A 比较收到的响应和预期的响应。如果两者匹配，设备 B 的身份就被验证。

Machine learning attacks if too many challenge-response pairs were exposed

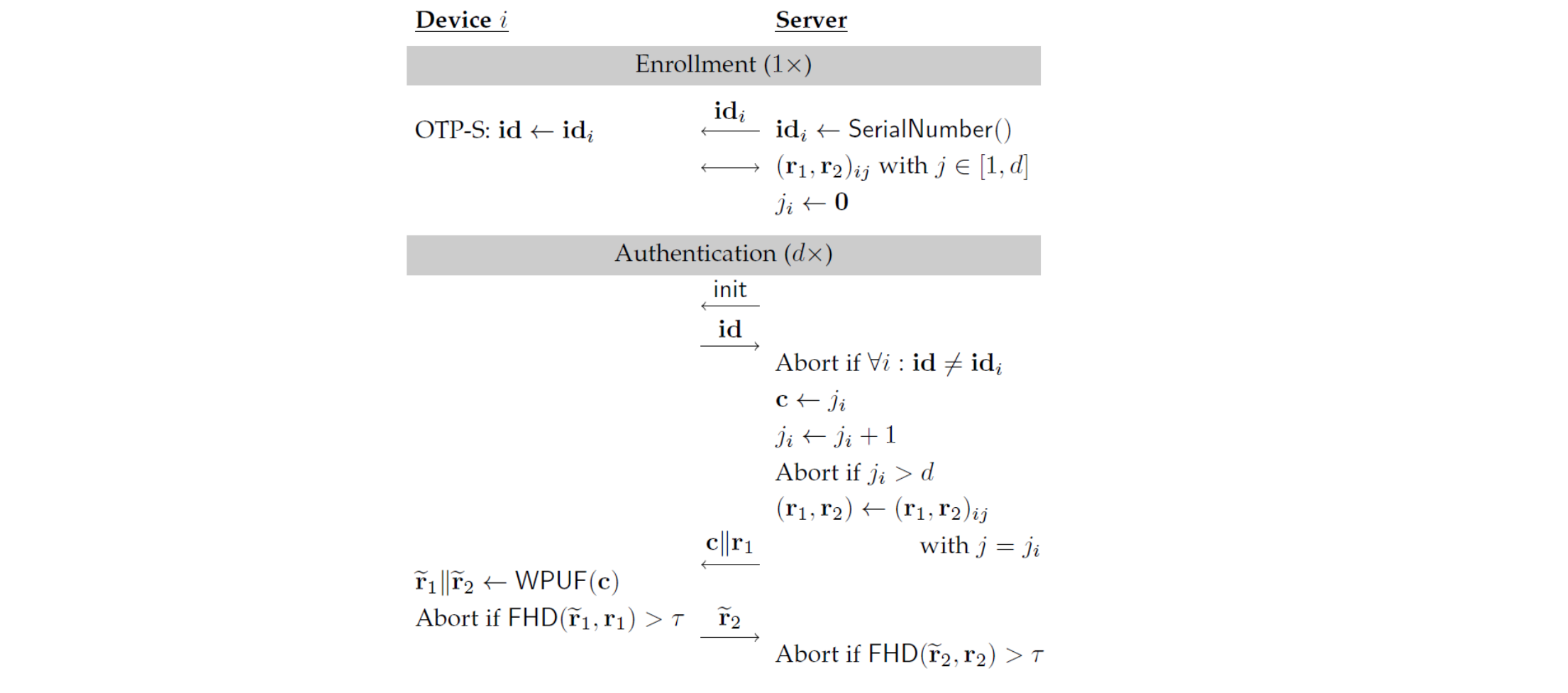

锁定协议 (Lockdown Protocol)

防止ML Attack，每次给$c||r_1$ , 如果不对的话就不回复了，Attacker就拿不到CR pair

Low-cost authentication

No crypto algorithm needed
Implementation e.g. in stand-alone RFID tags通过在每个产品上附加低成本RFID标签
Possible Applications: Supply chain tracking,Counterfeit伪造品 detection for consumer goods

PUFs used for key generation

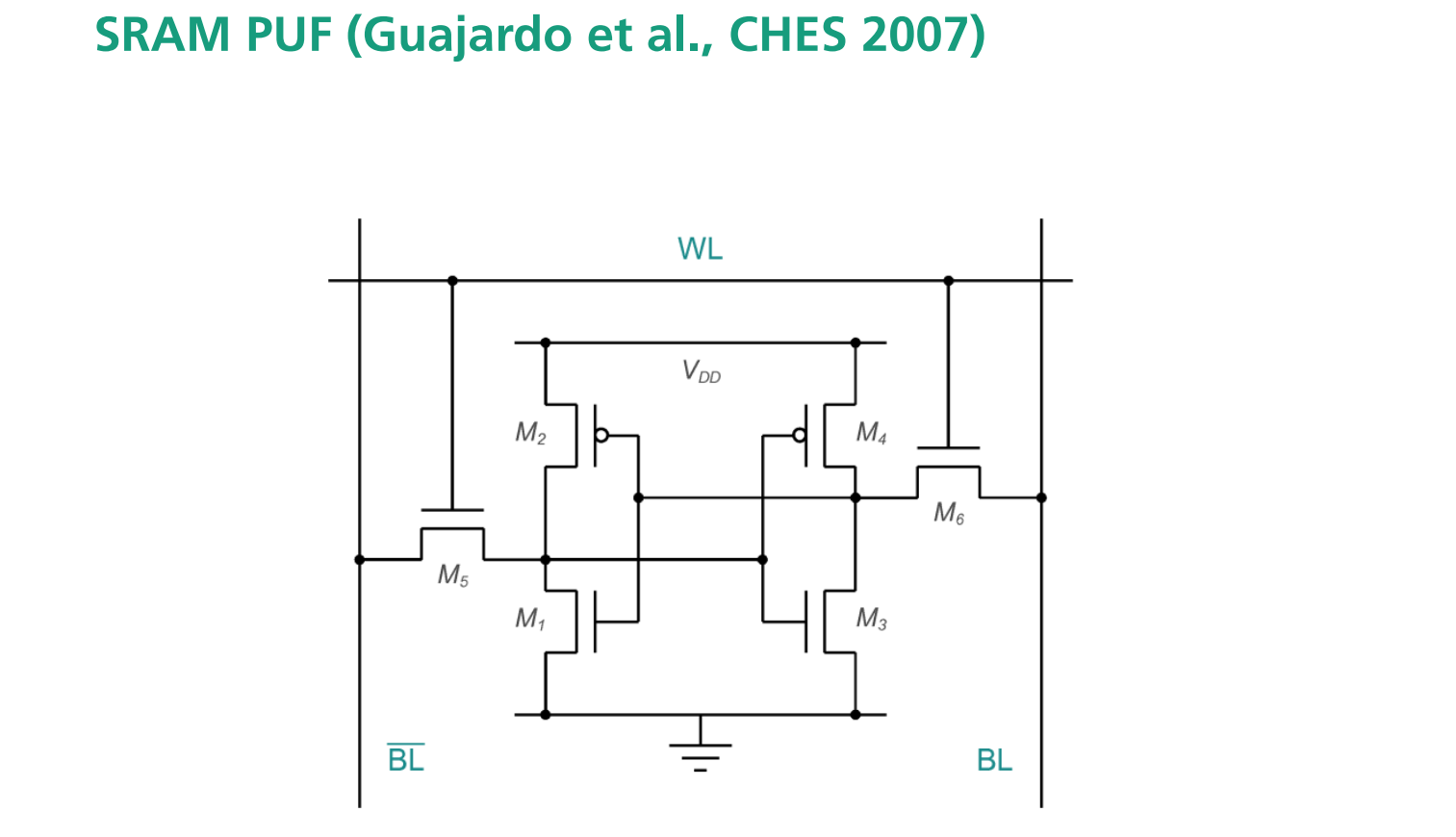

是一种基于SRAM存储单元的物理不可克隆函数。它利用了SRAM在上电初始化时的随机行为，当SRAM单元上电时，每个单元会随机地稳定在0或1状态，具体取决于晶体管的物理差异生成独特的硬件指纹

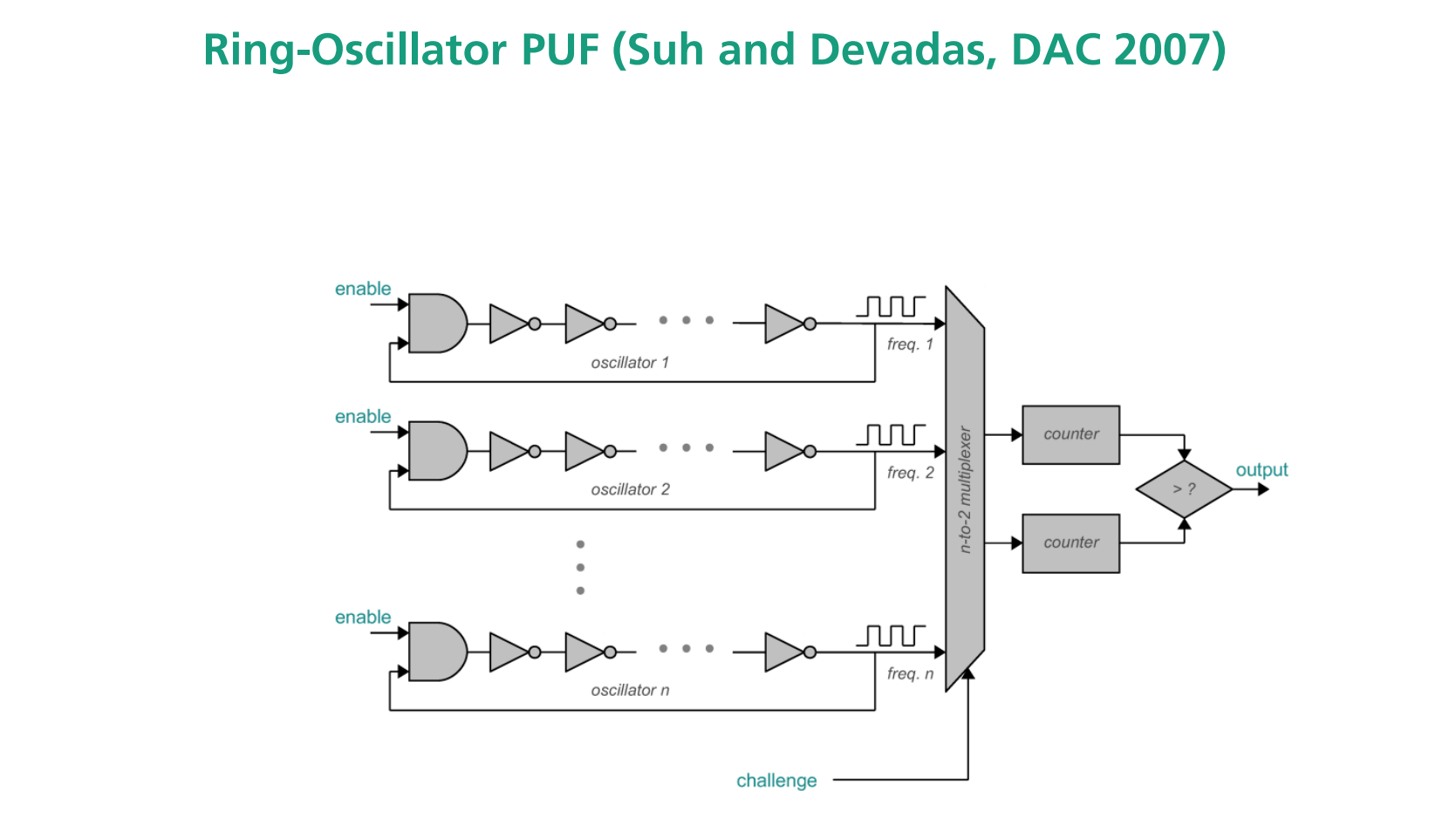

有 $n$ 个 oscillators, 他们产生frequency通过multiplexer变成2个counter, 然后比较哪个大. Challenge 来选择哪个oscillator通过 multiplexer

PUF keys + crypto algorithm

Read out unique PUF reponse
Replaces permanent key storage
Apply standard cryptographic algorithm

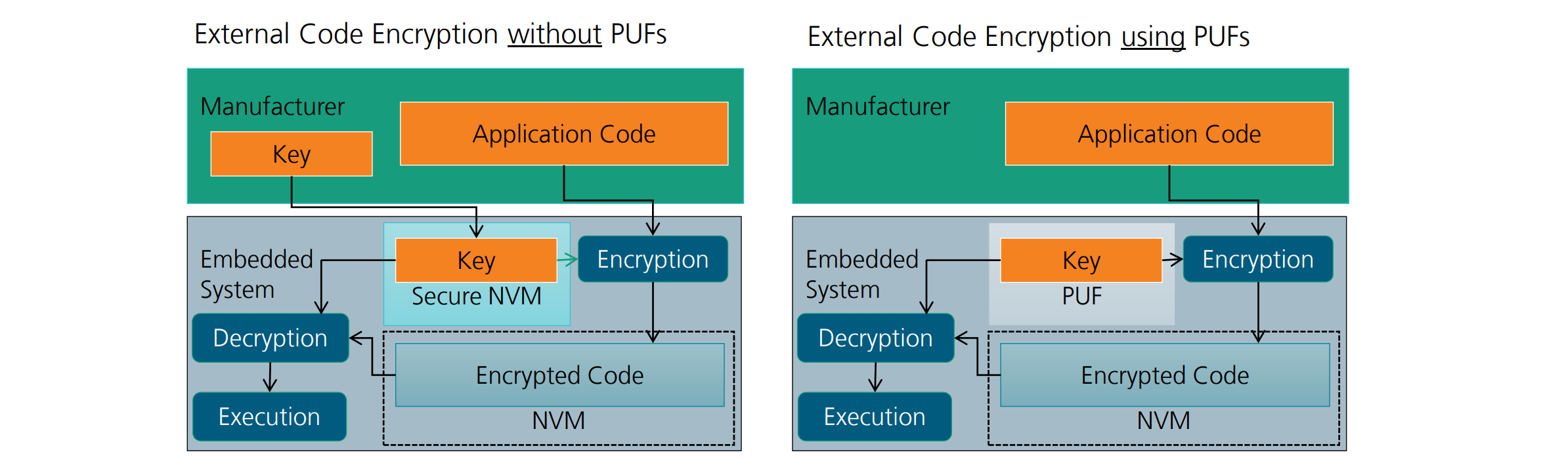

PUFs for key storage – Idea

No secured Non-Volatile Memory (NVM) → lower cost安全的非易失性存储器（NVM）
Secret (Key) only available at runtime → harder to attack
Can be realized if no secured NVM is available

Measuring RO Frequencies

std shows: not i.i.d (often assumed)标准差表明这些频率数据并不是独立同分布
Mean shows: not every pair is balanced这种不平衡可能导致偏差，进而降低熵（entropy）

在使用环形振荡器（RO）实现的物理不可克隆函数（PUF）时，频率测量是关键的一步

Temperature coefficients
Not the same everywhere -> variations in PUF response over temperature
Insights into specific device (where to place ROs)，RO的位置选择对于PUF的性能和稳定性有重要影响
Modeling: use measured properties to model PUF performance before actually measuring it
Bit-Alias评估需要大量的PUF实例，这在实际设备中实现是不可行的。通过建模和仿真，可以生成大量虚拟PUF实例，进行Bit-Alias评估
use model to simulate required sample size

PUF-based tamper protection

goal: detect and counteract physical access
篡改检测（Tamper-Detection）
篡改响应（Tamper-Response）
零化（Zeroization）在检测到篡改事件后，系统会立即清除敏感数据，以防止攻击者获取

确保即使在设备断电的情况下，篡改检测系统仍能工作

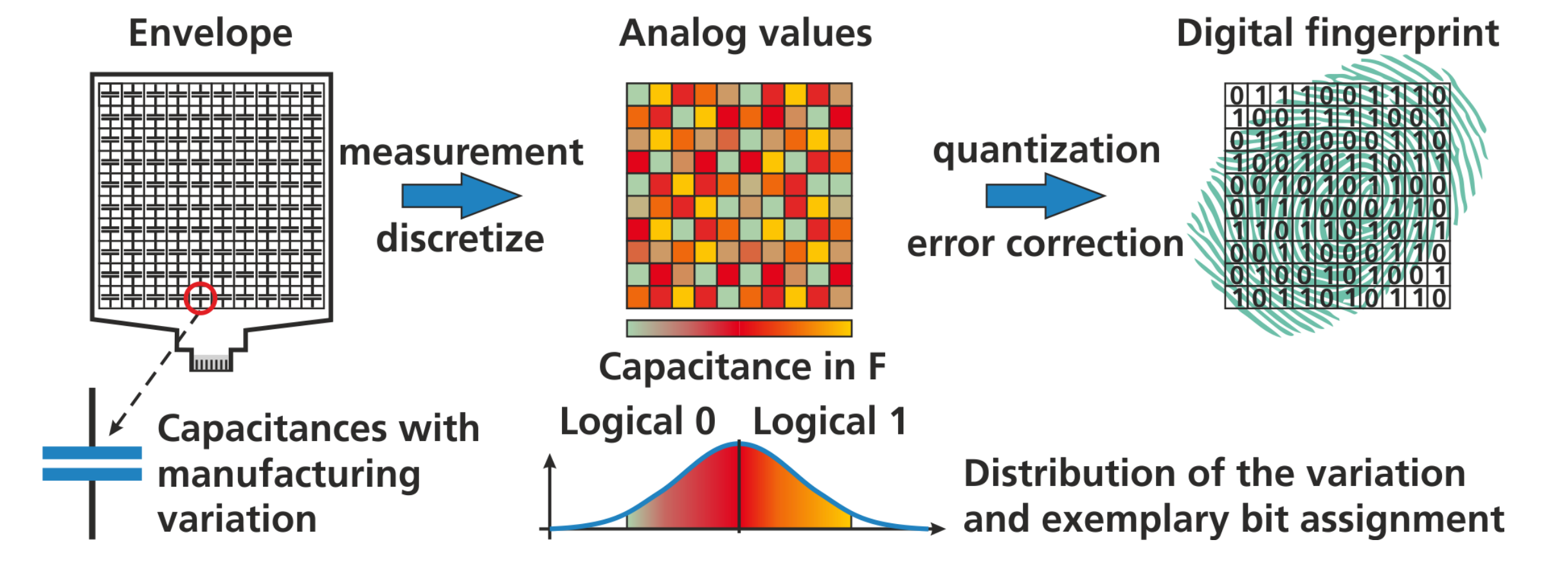

Our approach: a PUF-based envelope – no battery required!

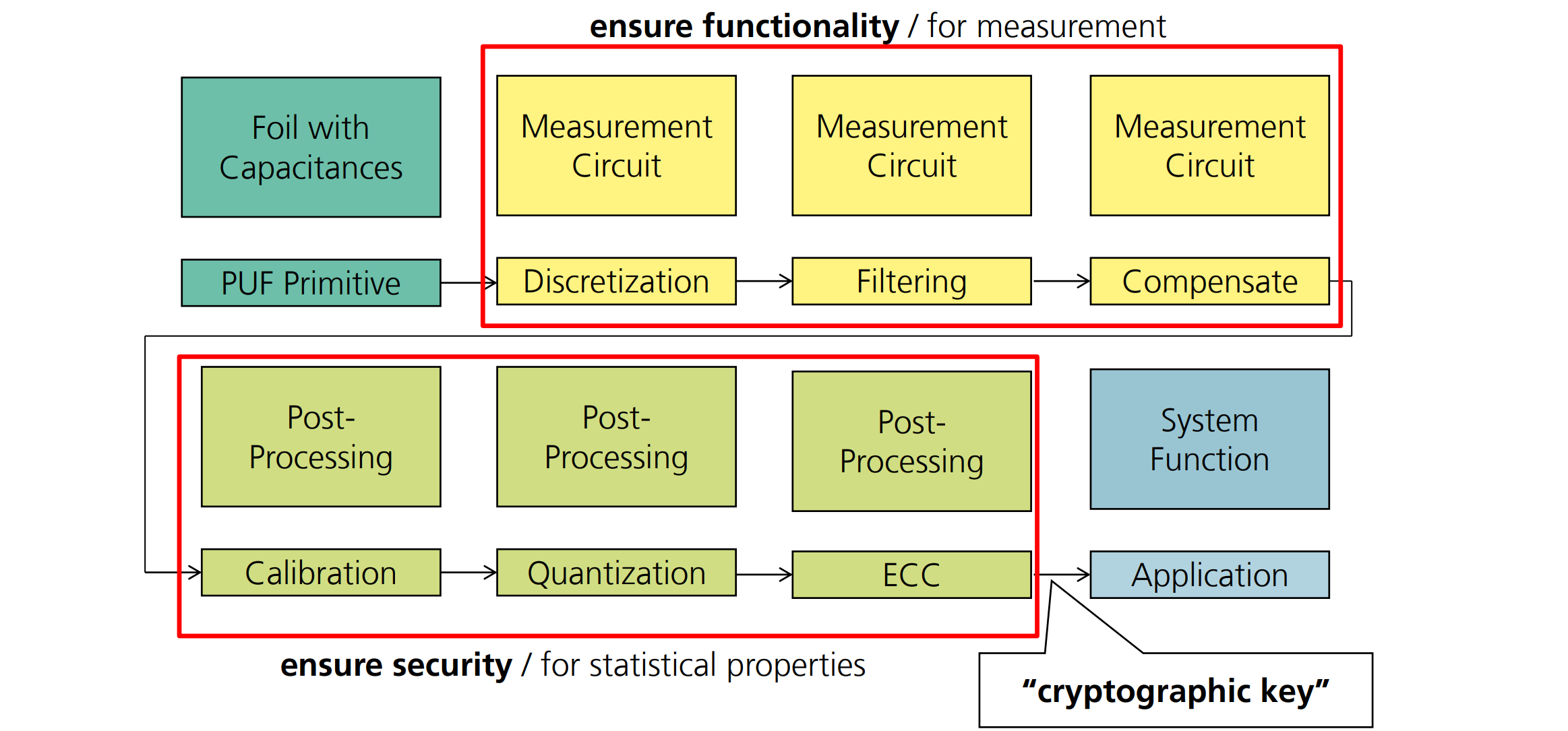

Postprocessing

用于从PUF生产cryptographic key

Trusted Electronics可信电子产品

fulfill requirements on quality and reliability 设备在整个使用寿命期间都能可靠运行。

确保在各种环境和条件下保持稳定和可靠的性能。
implement a known and complete specification设备严格按照规定的规格进行操作。

设备仅执行规格中定义的功能，不包含可以用作后门的功能。

规格中的功能在供应链中不会被后续修改
must be sufficiently hardened against attacks that change the functionality without the consent of the user防止未经用户同意的功能修改

设备需要在规格中包含安全机制。

当面对恶劣环境时，不会暴露规格外的弱点。

实现攻击通常利用规格外的属性进行攻击，因此设备必须防范此类攻击

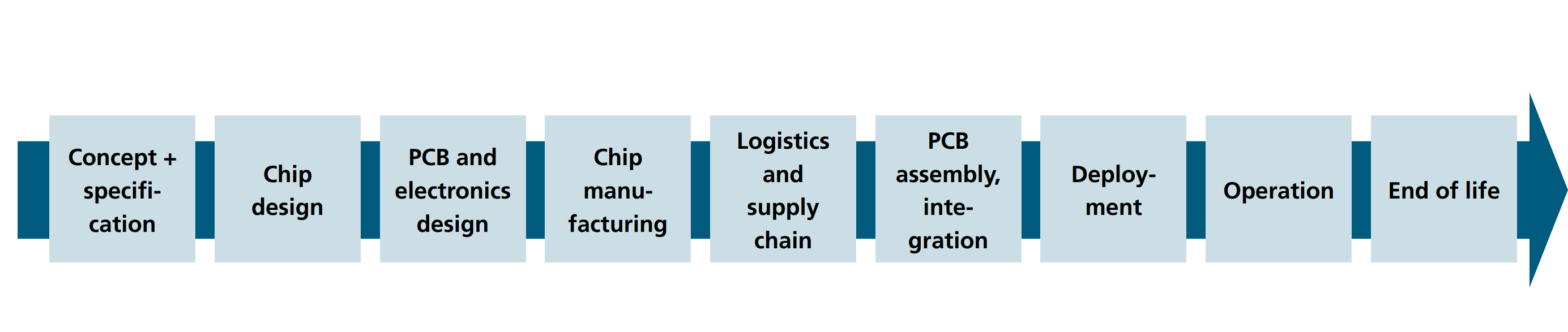

Threats to electronics devices

Weaknesses弱点是由于设计或制造过程中产生的错误或缺陷。这些弱点在设备的整个生命周期中可能被恶意攻击者利用
Backdoors后门是恶意行为者故意植入设备中的隐蔽功能或漏洞，目的是在特定情况下进行利用。
Gray-market hardware灰色市场硬件包括假冒、低质量或标签错误的设备或组件。这些非正品硬件进入供应链会导致一系列问题，包括设备性能不稳定、故障率高、甚至存在安全隐患。

Electronics value chain

Threats along the value chain

Concept and specification，

Incomplete or incorrect specification
Intentional weaknesses in specifications and standards

Chip design

Implemetation mistakes
Ambiguous functionality
Implementation attacks outside threat model during design time
Design tool optimizations that remove security functionality

backdoor

Intentionally introduced implementation errors or backdoors in in-house developments or 3rd party IP
Design tool modifications for vulnerabilites or backdoors

PCB and electronics design

Exposed external interfaces
Unintentional side channels

backdoors

Intentional side channels
Trojan ICs and interfaces for trojan ICs

Chip manufacturing

Undetected errors in design and mask data
Process deviation from the specification

backdoors

Tampering with design and mask data
Process deviation from the specification

Gray-market hardware

Overproduction
Source for relabeled chips

IC logistics and supply chain

Gray-market hardware

Reentry of discarded chips
Source for relabeled chips

End of Life

Reverse engineering instead of recycling / destruction

Source for recycled chips

Exercise

drow secure system architecture

SCA

Method to Decapsulation, why need decapsulation

PUF

why ROM not good for key storage
describe fuse, anti fuse
describe Arbiter PUF
what is good for low cost authentication
usage of low cost authentication
why use PUF for key storage

Enclaves

requests to implement enclaves
goal of enclaves
ways to realize Backtracking resistance and Prediction resistance

Secure prosessor

root of trust
